How to Configure An G&L Smart Drive or S200-DLS with Secondary Encoder | 22 Apr 2020 | |

How to Configure An G&L Smart Drive or S200-DLS with Secondary Encoder

I have a customer with old system, Stand-alone Digital MMC (M.3000.0653) and S200-DLS (S20660-DLS). Want to add auxiliary encoder to close position loop of driven axis. Using J8 Aux Feedback port on S200. What is the PicPro function block to use for this purpose?

Comments & Answers

kenny.hampton@… said ...

kenny.hampton@… |



The setup for the secondary encoder is done in the PicPro software’s  Drive Maintenance  in the Expert View.   There is no Function block setup necessary to complete the feedback setup.

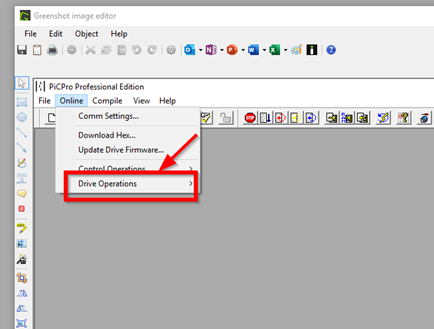

Go to Online and Select Drive Operations and Select Maintenance

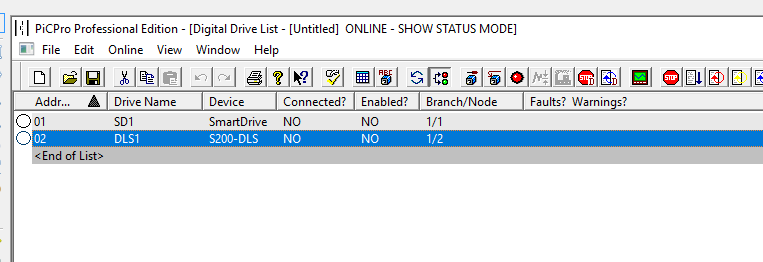

Select the drive you want to configure the Aux Feedback and double click on it






Select Expert View for the S200-DLS drive setup.

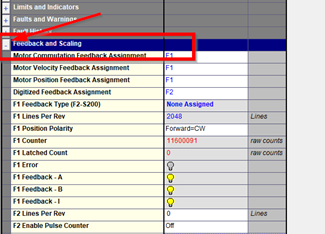

Expand Feedback and Scaling






Double Click on the F1 Feedback Assignment Cell.  The Feedback Assignment Window Screen will open up

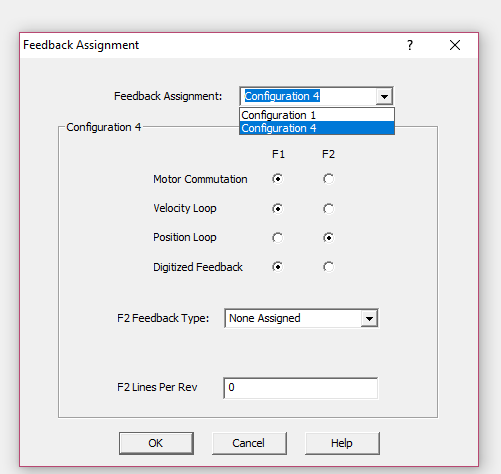

Select Configuration 4 the Aux Feedback will be configured for the axis position feedback

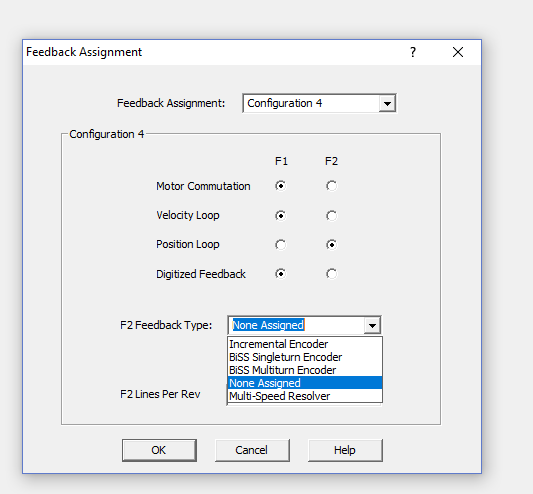

Select the  F2 Feedback Type you plan to use.






Enter Line count of encoder in the F2 Lines Per Rev Box.  Select Okay at the bottom of the setup window





The setup for the secondary encoder is done in the PicPro software’s  Drive Maintenance  in the Expert View.   There is no Function block setup necessary to complete the feedback setup.





Go to Online and Select Drive Operations and Select Maintenance






Select the drive you want to configure the Aux Feedback and double click on it






Select Expert View for the S200-DLS drive setup.



Expand Feedback and Scaling






Double Click on the F1 Feedback Assignment Cell.  The Feedback Assignment Window Screen will open up



Select Configuration 4 the Aux Feedback will be configured for the axis position feedback






Select the  F2 Feedback Type you plan to use.






Enter Line count of encoder in the F2 Lines Per Rev Box.  Select Okay at the bottom of the setup window



The setup for the secondary encoder is done in the PicPro software’s  Drive Maintenance  in the Expert View.   There is no Function block setup necessary to complete the feedback setup.





Go to Online and Select Drive Operations and Select Maintenance






Select the drive you want to configure the Aux Feedback and double click on it






Select Expert View for the S200-DLS drive setup.



Expand Feedback and Scaling






Double Click on the F1 Feedback Assignment Cell.  The Feedback Assignment Window Screen will open up



Select Configuration 4 the Aux Feedback will be configured for the axis position feedback






Select the  F2 Feedback Type you plan to use.




Enter Line count of encoder in the F2 Lines Per Rev Box.  Select Okay at the bottom of the setup window.
