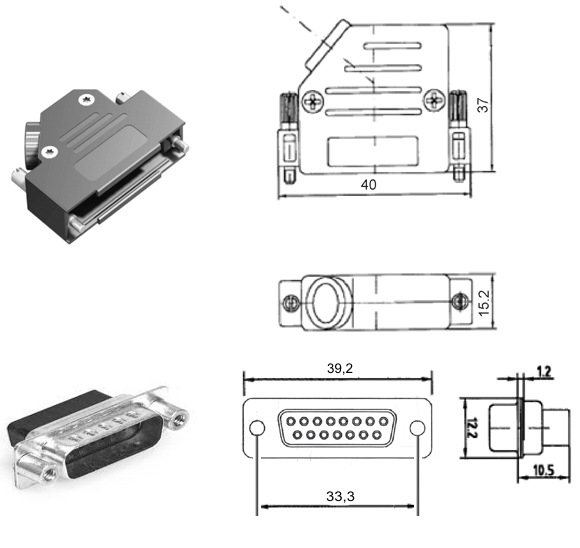

Encoder Connector (S300-S700)


Technical Data

Pins 15
Temperature range -40 to 120 °C
Protection class
Max. current
Max. voltage
Test Voltage
Contact resistance
Mating cycles
Pollution class 3 (to EN 61948)
Overvoltage category III (to EN 61948)
Cable diameter max. 13 mm
Wire cross section AWG 19 to 24
0.25 to 0.75 mm²
