AKD X10 Primary Mating Connector - 15-Pin Male High Density D-Sub breakout board

Kollmorgen does offer a Male 15-pin High-Density D-Sub connector with breakout board. Customers can use this for the X10 Feedback primary connector on AKD units.

This type of connection is convenient for wiring non-standard cables, or non-Kollmorgen feedback devices used with frameless motors.  It can be used for prototyping or initial startup.  But it is not recommended for normal operation, since the feedback wiring will not be shielded and will be susceptible to EMI.

Kollmorgen part number: 768-016901-01
Description: CONN MODULE, CUSTOM, 15 PIN HD D MALE TO 3 ROW TERMINAL BLOCK

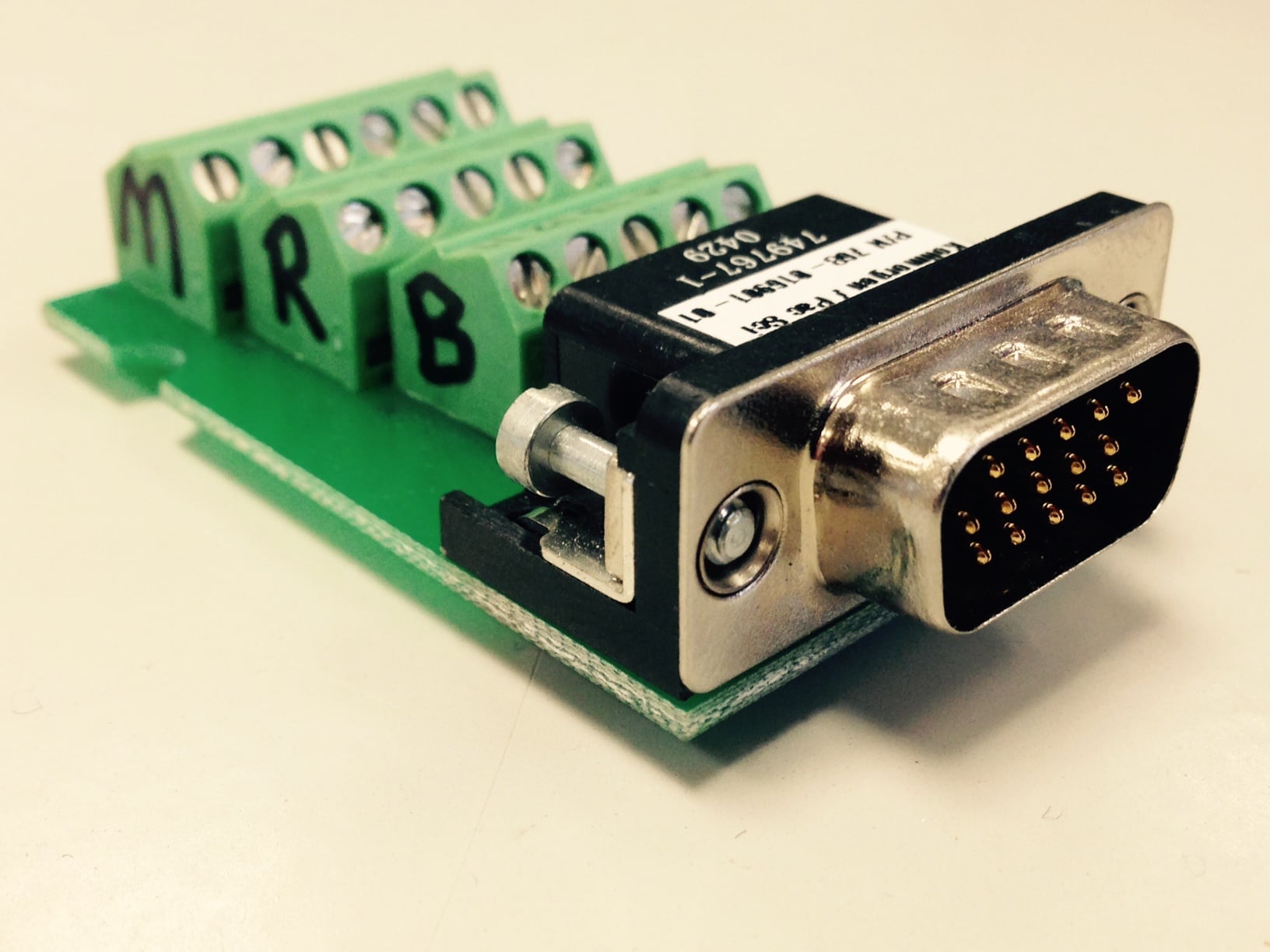

Picture 2 - 768-016901-01.jpg

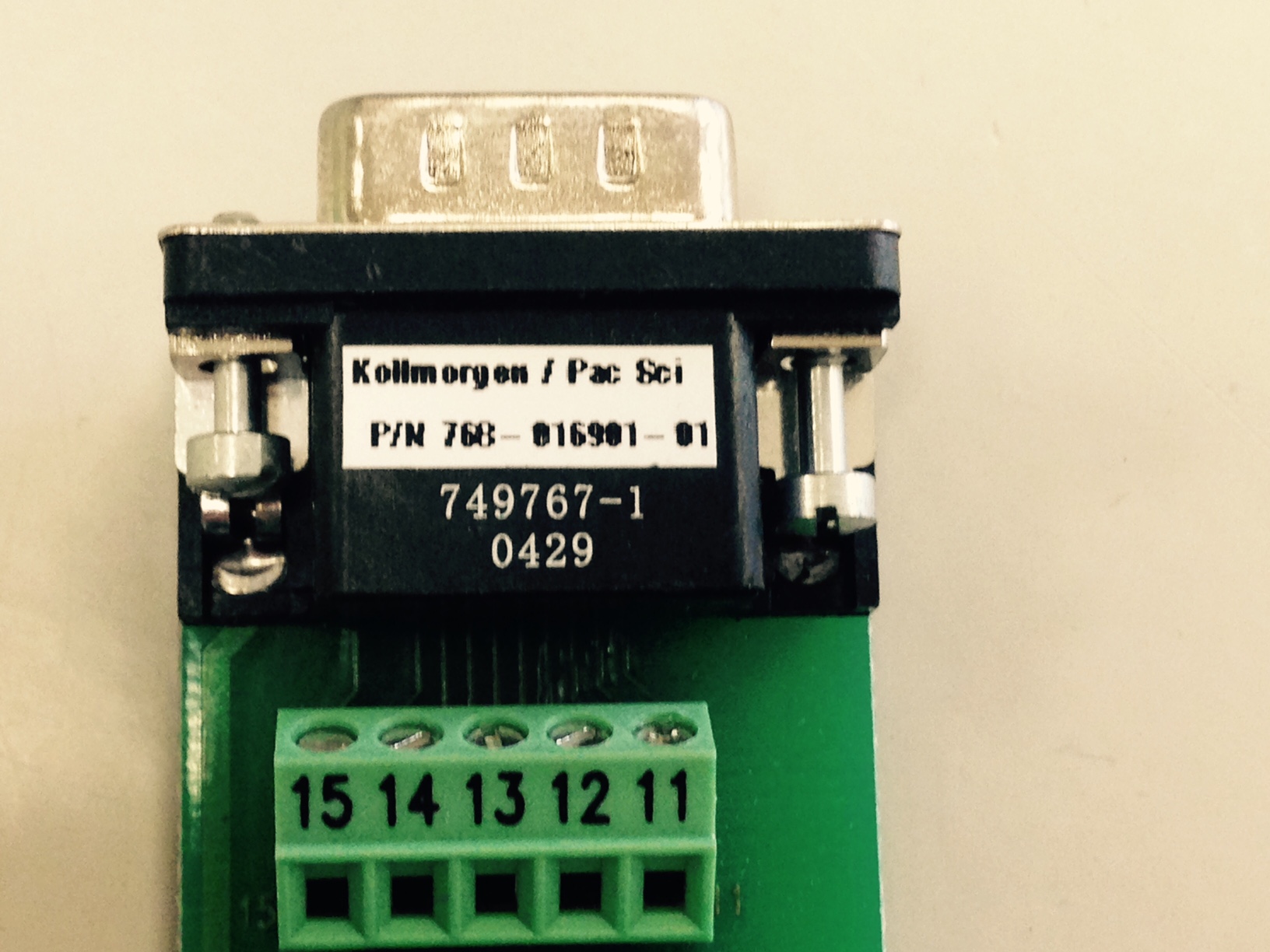

Picture 1 - 768-016901-01.jpg
