AKD-T Blending Moves Similar to Motion Task | 25 Apr 2017 | |

AKD-T Blending Moves Similar to Motion Task

I am trying to recreate the blend move functionality the is present in the motion tasking on the AKD-P, but with my program using a AKD-T. I need the expanded functionality that the AKD-T offers, but I would like to avoid stopping in between moves. I have attempted to use the MOVE.GOUPDATE command and currently playing around with camming off of a virtual axis. Do you have any suggestions on how to smoothly transition between moves without coming to a compete stop using an AKD-T ?

Comments & Answers

kenny.hampton@… said ...

kenny.hampton@… | Tue, 04/25/2017 - 17:42

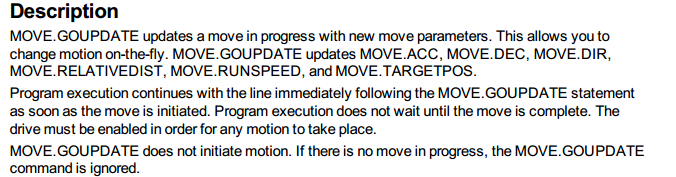

You should use the command MOVE.GOUPDATE this command will blend second commanded move.
