| Current Firmware Version | 1.19.00.002 *Current firmware is available in NB versions. NA versions are only supported for 1.14 and under |
| Firmware Release Date | 12/10/2019 |
| Current Hardware Revision | E |
| Current Hardware Release Date | 01/01/2014 |
| Current WorkBench Version | 2.2.0.4448 |
| WorkBench Release Date | 12/10/2019 |
| WorkBench Webhelp - Beta Version | English |
| WorkBench Webhelp - Latest Firmware Release | 中文, Deutsch, Português |
| Part Number Scheme | Open the PDF |

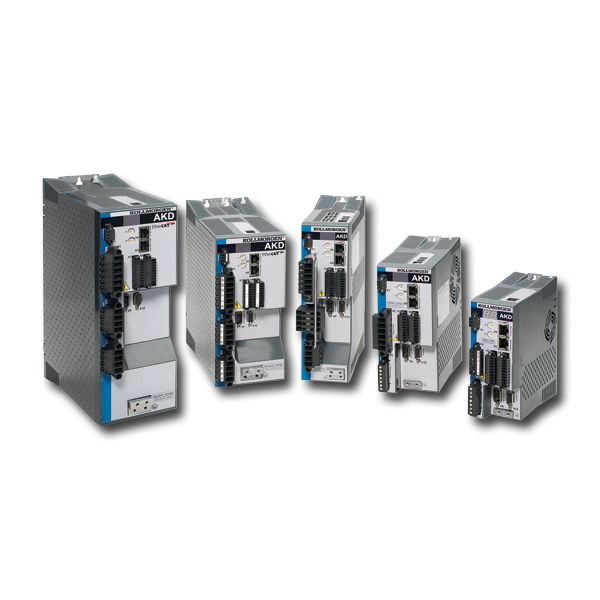

| Model | Description |
|---|---|
| AKD-Bzzzyy-xx | Base AKD |
| AKD-C|Nzzzyy | "AKD C | N" a decentralized drive system consisting of the N drive and C power supply |
| AKD-Mzzzyy-MC.. | "AKD PDMM" offers integrated motion controller and programmable machine control. |
| AKD-Pzzzyy | Position indexer |
| AKD-Tzzzyy | "AKD BASIC" is programmable with BASIC |
| AKD-xzzz06 | 120/240 VAC variant |
| AKD-xzzz07 | 240/480 VAC variant |
| AKD-xzzzyy-IC.. | variant offers a built-in I/O option board with additional digital and analog I/Os |
This problem is related to the MSI installer. You can resolve it as follows:
First, check the LED on the RJ45 connector. If the LED is not illuminated, then no communication with the drive is possible. Possible causes for loss of communication with the drive include:
If the LED is lit and the IP address on the drive is 0.0.0.0, then the most likely problem is that the drive hardware has not detected a valid link.
There are two ways to find out about what parameter is behind a text box in Workbench.
5 seconds with Ipeak. Smaller currents can be sustained for longer periods. See Foldback Times.
Up to 500 s depending on the active current. See page Foldback Times.
Autotuning of your application delivered unexpected results while tuning the current feed forward value. Please deactivate "Tune Acceleration FF" in the Workbench Performance Servo Tuner screen and restart the tuning.
In most cases, firmware is downloaded using WorkBench without setting the hardware into a specific “download” state. If you need to download firmware, but are unable to connect to WorkBench, use the procedure described in Forcing the drive into firmware download mode in the Workbench help.
If you are communicating through the Ethernet port at connector X11, you might not see your drive in the connect window for any of the following reasons:
See Device not Shown in the Workbench Help for a detailed discussion of this problem.
This is because you are using the Windows classic theme. To get a white background you must change the theme that Windows is using.
To change the theme go to the Control Panel, select Display, select the Themes tab, and choose a new theme, such as "Windows XP".
Although Windows displays this message and the limited functionality icon for the drive connection, your PC can communicate fully with the drive. This message and the icon are normal for an AKD to PC connection.
| Digital/analog I/Os | MultiFieldbus | Position output (encoder emulation) | Software interfaces | MultiFeedback |
|---|---|---|---|---|
|
|
|
|
