Resolution in Position Loop

Valid for S300, S400, S600, S700

Resolution in the position loop must be set precisely for linear applications or gearing with rotary appliaction to get a simple positioning with SI units.

You can setup the resolution with the setup software

  • S300/700 screen page Units/Mechanical
  • S400/600 screen page Position/ Position Data

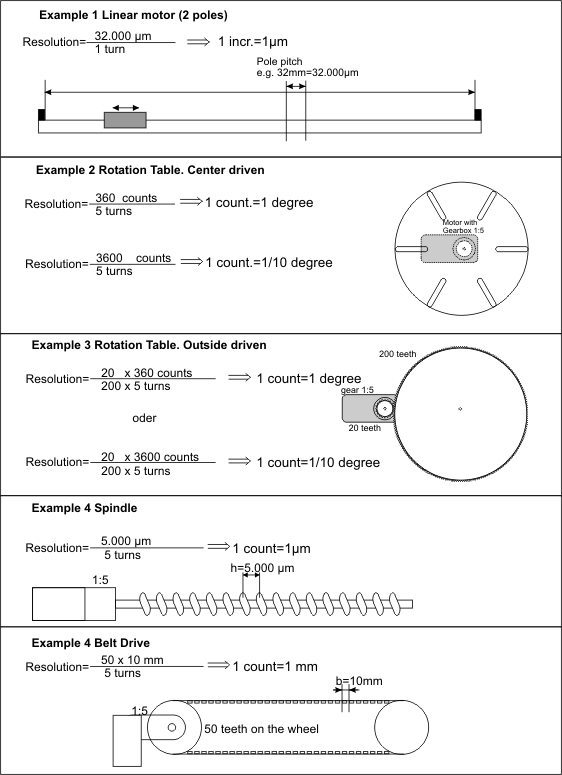

Examples for unit selection and resolution related to the application:
