Motion Task Series

Valid for S300, S400, S600, S700

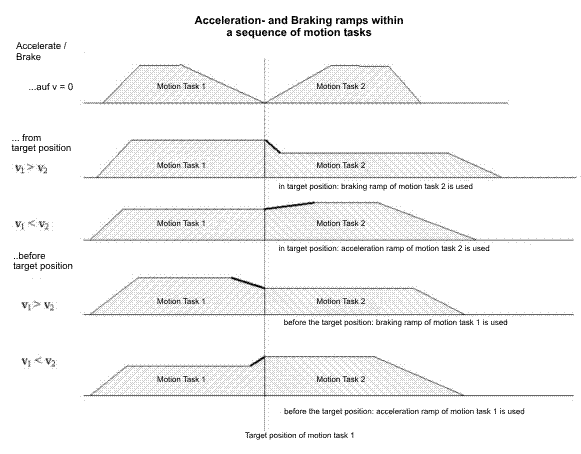

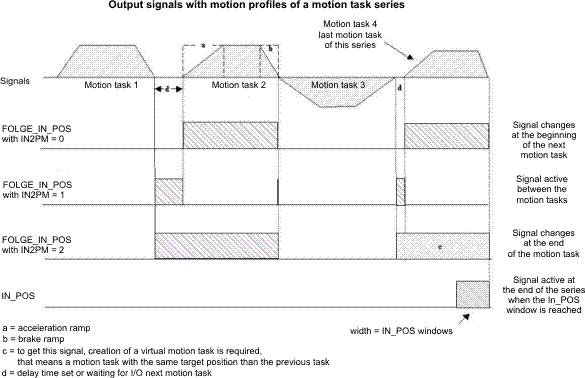

Using the setup software you can define series of motion tasks. The specials that should be known with the signal Folge_In_Pos and with the used acceleration and brake ramps are shown in these diagrams:

:image
