Human Machine Interface: Mensch Maschine Schnittstelle für die Praxis
Das Human Machine Interface gehört als wesentlicher Baustein zu einem effektiven Automatisierungssystem. Deshalb umfasst die Kollmorgen Automation Suite ein flexibel einsatzbares Programm funktional skalierter Geräte für die Mensch Maschine Schnittstelle. Wir bieten Touchscreens, Funktionstasten und Tastaturen in zahlreichen Varianten und Größen, die praktisch allen Anforderungen einer Mensch Maschine Schnittstelle gerecht werden. Human Machine Interface von Kollmorgen – von der einfacher Bedienerschnittstelle bis zur komplexen Steuerungsumgebung.
Das Produkt ist weltweit verfügbar
Eigenschaften
- Die AKI2G Bedienkonsolen bieten jetzt einen Bildschirm im Breitformat, der die Anzeigen im traditionellen 4:3-Seitenverhältnis ersetzt.
- Mit korrosionsbeständigem Kunststoffgehäuse und IP65-Front oder robustem Aluminiumgehäuse mit grauer Pulverbeschichtung und Front mit Schutzart IP65, NEMA 4X/12 und UL Typ 4X/12 erhältlich. Beide Ausführungen sind gegen direkten Regen, Schnee, Strahlwasser, Schmutz, Ruß und Staub beständig.
- Auswahl zwischen dem energieeffizienten ARM9 Prozessor, der hohe Leistung für kleine und mittelgroße Applikationen bietet, und leistungsstarken ARM A9 Prozessoren in Ausführungen als ARM Cortex-A9 Ein- oder Zweikernprozessor für flüssige Bildschirmaktualisierungen und die schnelle Ausführung von Programmen in anspruchsvollen Applikationen.
- Die hochauflösende TFT-LCD-Anzeige mit LED-Hintergrundbeleuchtung gewährleistet eine gute Sichtbarkeit bei weiten Betrachtungswinkeln unter nahezu allen Lichtbedingungen.
- Migrationstabellen zur Auswahl der richtigen Konsole, wenn Sie Ihre bestehende Kollmorgen HMI-Lösung auf die neuen AKI Bedienkonsolen aufrüsten möchten.

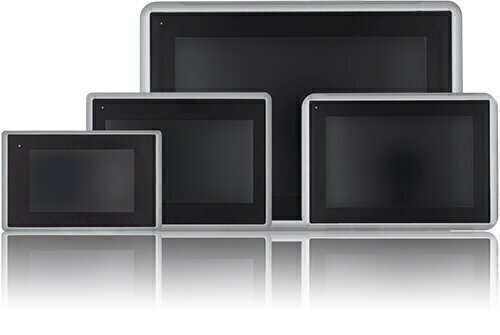

- 5" Touchscreen HMI — 800 x 480 Pixels
- 7" Touchscreen HMI — 800 x 480 Pixels
- 12.1" Touchscreen HMI — 1280 x 800 Pixels
