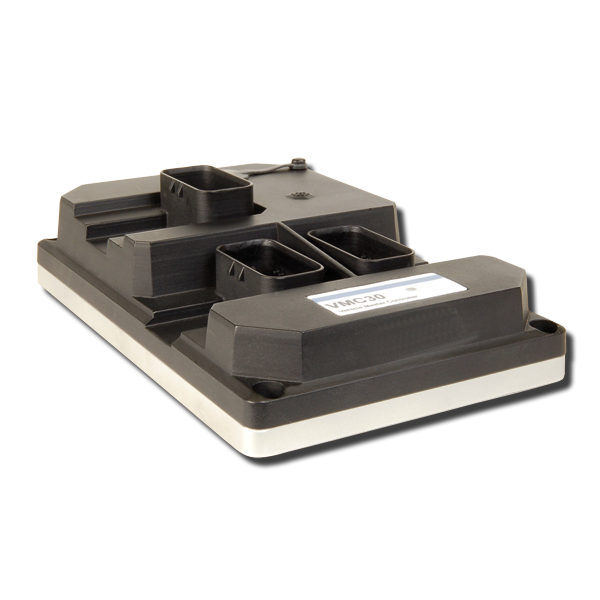

VMC 30 Master Controller

VMC30 is a new-generation, general-purpose controller for electric vehicles that uses CANopen® for communications. With extensive I/O capabilities, this cost-effective solution provides OEM-programmable, extensible control for traction, steering, lifts, hydraulic valves, auxiliary equipment and other vehicle functions. This versatile master control is ideal for managing all the requirements of any modern electric vehicle—whether large or small, simple or complex.

Contact Us
Contact Us
1-540-639-2495 x4113

Companion Products

  • ACD
    ACD

    These compact controllers are suitable for use in steering applications as well as hydraul... Learn More >>

  • ACS Series Vehicle Controllers
    ACS Series Vehicle Controllers

    These 24-80V controllers are ideal for powering pump and traction applications in medium t... Learn More >>

  • TSP and TSW Motors
    TSP and TSW Motors

    These brushless AC induction motors are efficient, durable and virtually maintenance free,... Learn More >>

Features

  • Fully customizable by the OEM, using a powerful C++ application programming interface (API), to meet vehicle-specific requirements
  • Central control of steering, traction, lifts, hydraulic valves, joysticks, displays, remote controls, relays, gas pedals, sensors and more
  • IP65 protection prevents water entry and allows safe operation in adverse environments
  • Flexible I/O accommodates a large number and wide range of vehicle controls and sensors
  • PWM (pulse width modulated) outputs save energy and extend actuator life, providing adjustable pull-in and holding-current levels
  • Up to 10 power outputs with current feedback allow precise current-controlled operation of proportional hydraulic valves and other devices requiring variable current
  • Freewheeling diode, overload protection, short-circuit protection and open load detection
  • Wide operating voltage from 24 V to 80 V with built-in under-voltage, over-voltage and reverse polarity protection
  • Support for service, diagnostics and downloading of software using our Truck Service Tool
  • Integrated USB-port for low-cost service connection to the system
  • Can serve as the gateway to all components connected to the CANopen® network
  • Real-time clock with super cap backup
  • Wireless communication option for service, fleet management and other remote applications

Benfits

  • Vehicle master controller with software development kit for fast and reliable application programming
  • Firmware platform with core functions available for application programming of electric vehicles\
  • Program your application in C++ with assistance from different vehicle configuration examples
  • Fast startup with native support for Kollmorgen systems such as ACS/ACD drives, displays and auxiliary products
  • Easily extensible to accommodate future needs, such as wireless communications
  • Low total cost of ownership, with quick and easy configuration to meet specific application requirements, along with simple diagnostics and maintenance



Supply voltage, nominal

24 to 80 V

Supply voltage, min/max

16.8/104 V

Power consumption

Max 6 W

Communication

1 CAN, galvanic isolation.

Reversed polarity

The unit can withstand reversed polarity at 1.2 x nominal supply voltage.

I/O

Sensor supply, 12 (14) digital inputs, 16 power outputs, 11 (19) analog inputs, 10 current controlled power outputs (EHC version).

Connector

2(3) x AMP Seal 23-pin, USB type B.

Processor

Atmel ARM7.

Memory

256KB Flash, 32kB SRAM, 4KB EEPROM, 128 KB Data Flash.

Temperature, operating

-40 to +55°C

Temperature, storage

-40 to +70°C

Relative humidity, operating

Max 95%, non-condensing.

Relative humidity, storage

Max 95%

Protection class

IP65

Width x height x depth

125 x 50 x 195 mm.

Weight:

0.75 Kg.
